Model

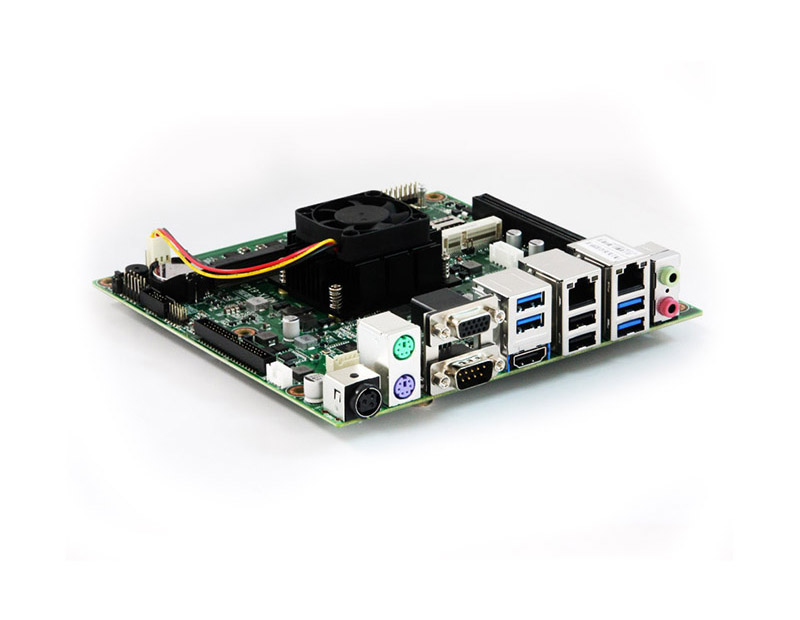

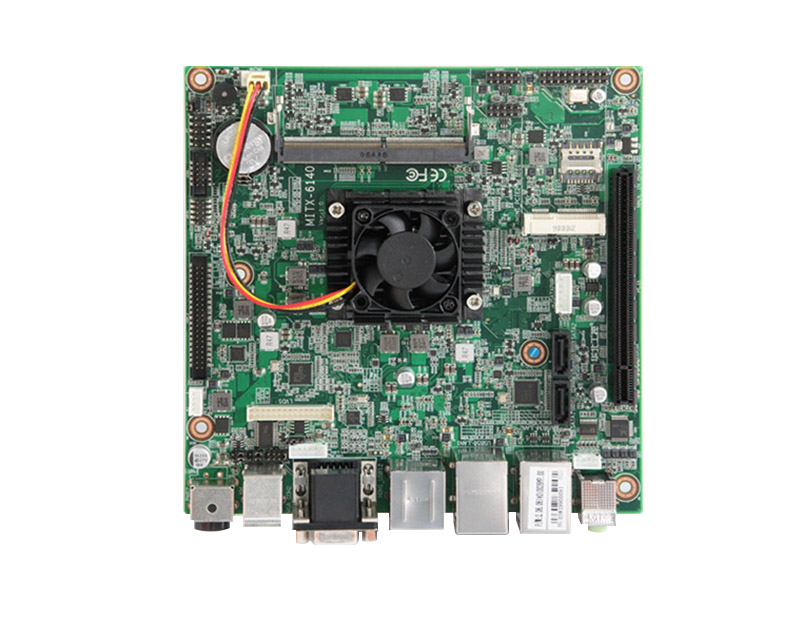

MITX-6140

CPU

Support Intel 8/9th Core i3/i5/i7 BGA1528-U CPU

Graphic Control

CPU integration

Memory

Support 1*SO-DIMM Memory slot,DDR4 2400MT/s,The biggest can support 32GB Memory

Storage

2*SATA,Support SATA3.0

Display Port

1*HDMI,1*VGA,1*LVDS Support independent three display, HDMI up to 4Kx 2K @24Hz VGA up to 1920x 1200 LVDS up to 1920x 1200

Ethernet

2*LAN LAN1 Intel I219Support AMT, LAN2 Intel I211 10/100/1000Mbps RJ45

USB

6*USB2.0,4*USB3.0

Audio

1*Headphone, 1*MIC-IN, 1*Line in,1*5W AMP

COM

5*RS-232,1*RS-232/422/485

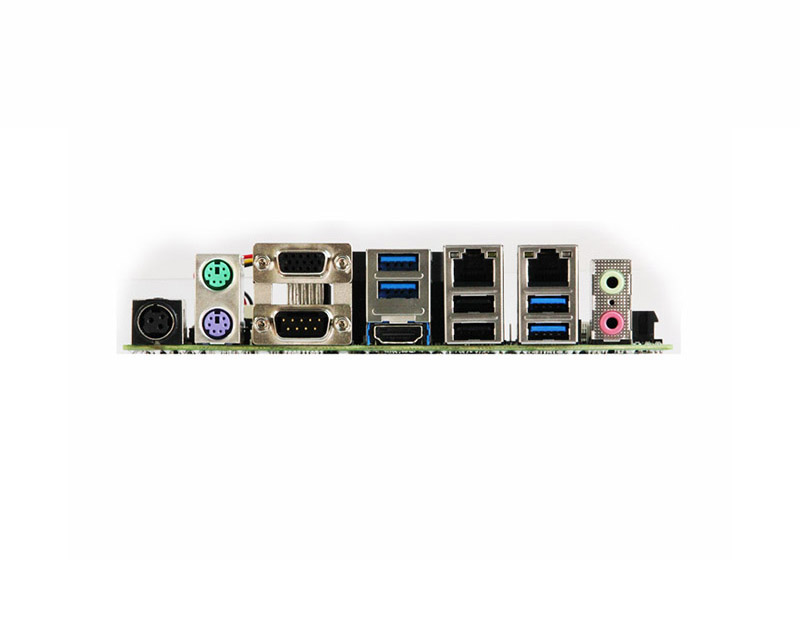

I/O

1*PCIe x16 slot(PCIeX4 signal) 2*Mini PCIe,One of the support 4G/Wifi,another support Wifi/SSD(optional) Support 1* CPUFAN（Support speed control） Support PS/2 Mouse and keyboard Support 8*GPIO

Watchdog

Support

BIOS

AMI UEFI BIOS

System

Windows 10,Linux

Power Supply

DC 12V

Temperature/humidity

Working temperature : 0℃～60℃ Storage temperature:-40℃～80℃ 5%～95% Relative humidity,No condensation

Size

170mm x 170mm
