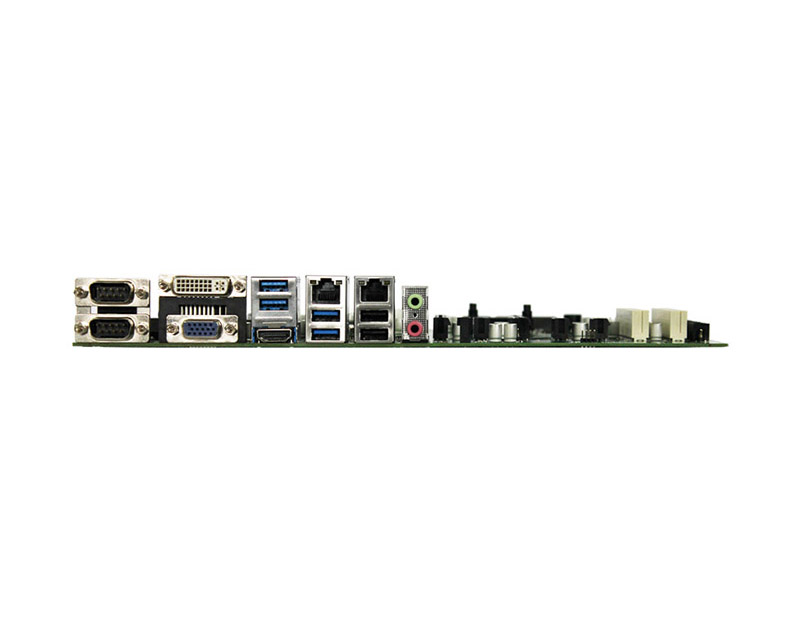

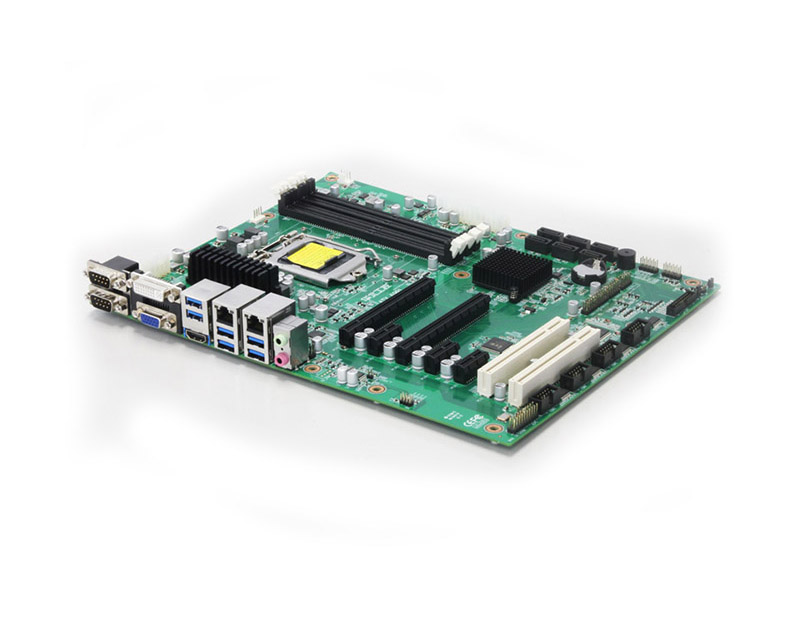

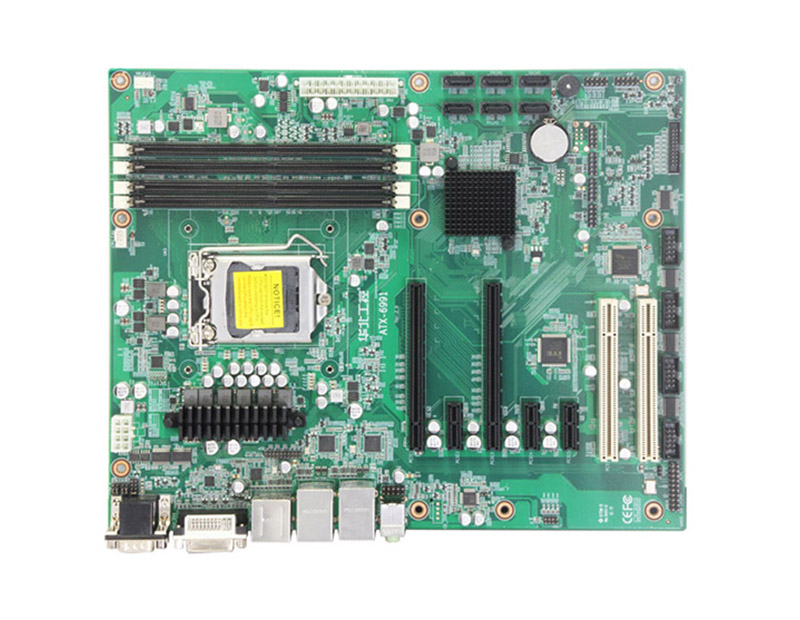

ATX-6991

Support Intel 8/9th Core i3/i5/i7/i9 LGA1151 CPU,2*LAN,6*USB3.0,8*USB2.0,6*COM,ATX motherboard

◆ Support Intel 8/9th Core i3/i5/i7/i9 LGA1151 CPU

◆ 4*DIMM DDR4 Memory

◆ 1*VGA,1*HDMI,1*DVI,1*DP

◆ 2*LAN,6*USB3.0,8*USB2.0,6*COM

◆ 2*PCIe x16,3*PCIe x1,2*PCI

Ask Price Comparison
  • Product Specification
  • Download Center
  • Model

    ATX-6991

    CPU

    Support Intel 8/9th Core i3/i5/i7/i9 LGA1151 CPU

    Chipset

    Intel Q370/H310

    Graphic Control

    CPU integration

    Memory

    4*UDIMM Memory slot,Support DDR4 2400/2666MHz, A single slot biggest support 32GB,board biggest Support 128GB

    Storage

    6*SATA 3.0

    Display Port

    1*VGA,1*DVI,1*HDMI,1*DP VGA up to 1920x1200 DVI up to 2560x1600 HDMI up to 4096x2304 DP up to 4096x2304

    Ethernet

    2*LAN Intel I211, 10/100/1000Mbps RJ45

    USB

    6*USB3.0,8*USB2.0

    Audio

    2*Line out,2*Mic in,1*J_SPDIFO,1*CD_IN,1*Line in

    COM

    5*RS232,1*RS232/RS422/RS485

    I/O

    2*PCIe x16(PCIe 8x signal),3*PCIe x1,2*PCI Support PS/2 Mouse and keyboard Support LPC extension,Collocation AFC-345C,Extension 4*COM Support 8*GPIO Support 1* CPUFAN(Support speed control),1*SYSFAN Support LPT 1*2X1OPin 2.0mm spacing

    Watchdog

    Support

    BIOS

    AMI UEFI BIOS

    System

    Windows10,Linux

    Power Supply

    ATX

    Temperature/humidity

    Working temperature:0℃~60℃ Storage temperature:-40℃~85℃ 5%~95% Relative humidity,No condensation

    Size

    305mm x 244mm
