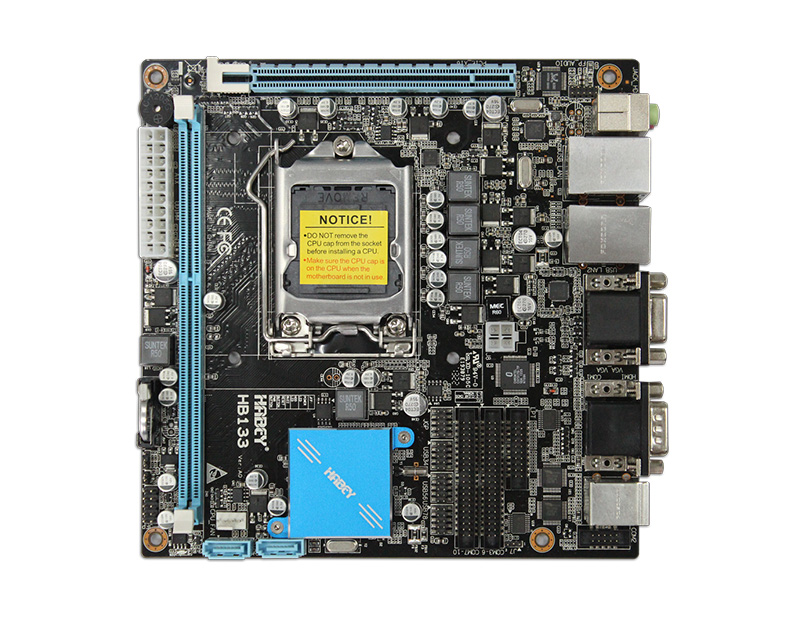

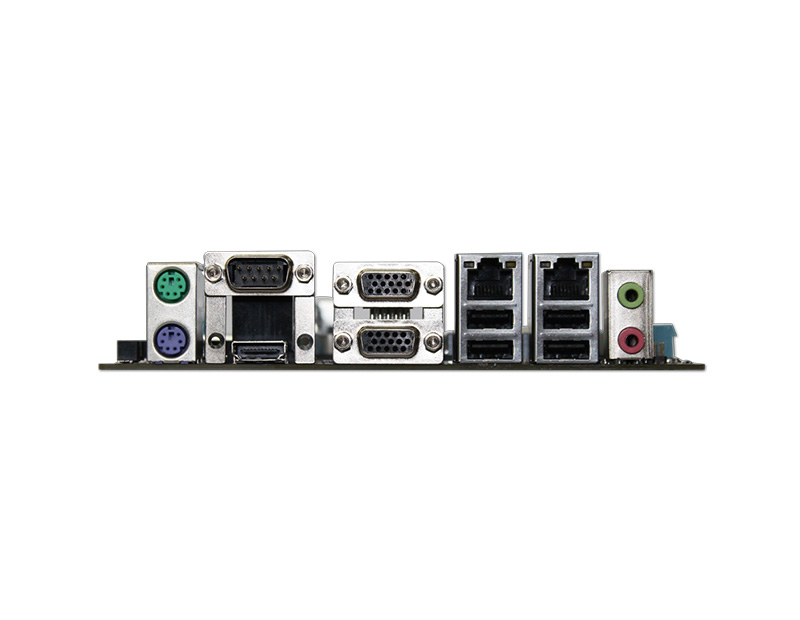

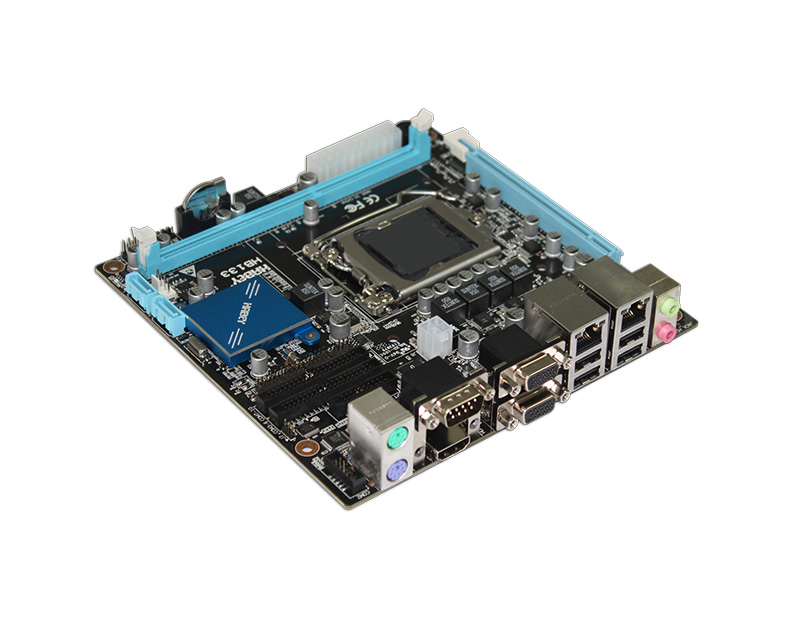

HB133

Support Intel 2/3th Core i3/i5/i7 LGA1155 CPU,2*LAN,10*USB2.0,10*COM,Mini-ITX motherboard

◆ Support Intel 2/3th Core i3/i5/i7 LGA1155 CPU

◆ 1*DIMM DDR3

◆ 2*VGA,1*HDMI

◆ 2*LAN,10*USB2.0,10*COM

◆ 1*PCIe x16

Ask Price Comparison
  • Product Specification
  • Download Center
  • Model

    HB133

    CPU

    Support Intel 2/3th Core i3/i5/i7 LGA1155 CPU

    Chipset

    Intel H61

    Graphic Control

    CPU integration

    Memory

    1*UDIMM DDR3 1066/1333 /1600MHz The biggest can support 8GB

    Storage

    2*SATA,Support SATA2.0

    Display Port

    1*HDMI,2*VGA HDMI up to 1920x1080 VGA up to 2048x1536

    Ethernet

    2*LAN RealTek 8111E/F, 10/100/1000Mbps RJ45

    USB

    10*USB2.0

    Audio

    2*Line-out,1*Line-in, 2*Mic-in

    COM

    9*RS-232, 1*RS-232/422/485

    I/O

    1*PCIe x16 slot Support 1* CPUFAN(Support speed control) Support PS/2 Mouse and keyboard Support LPT Support 8*GPIO

    Watchdog

    Support

    BIOS

    AMI UEFI BIOS

    System

    Windows XP ,Windows 7, Windows 10,Linux

    Power Supply

    ATX

    Temperature/humidity

    Working temperature : 0℃~60℃ Storage temperature:-40℃~80℃ 5%~95% Relative humidity,No condensation

    Size

    170mm x 170mm
