Model

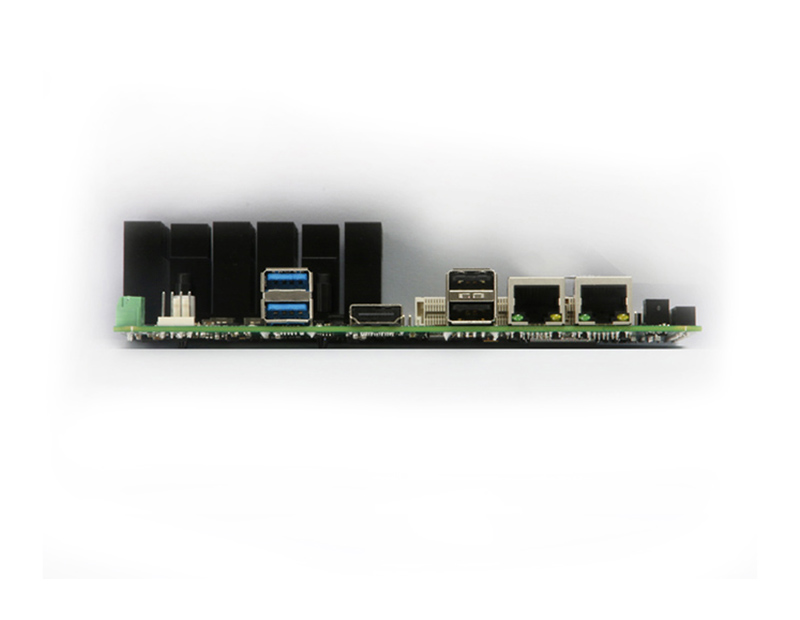

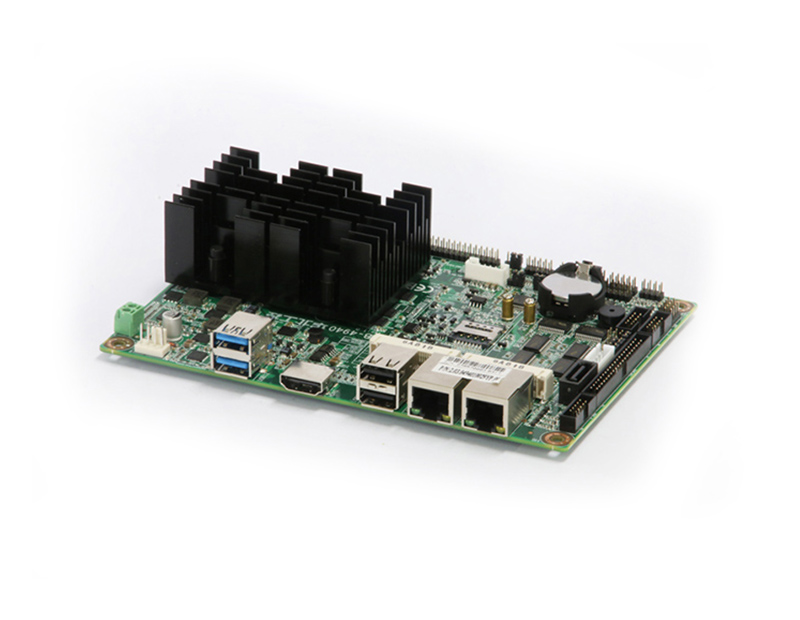

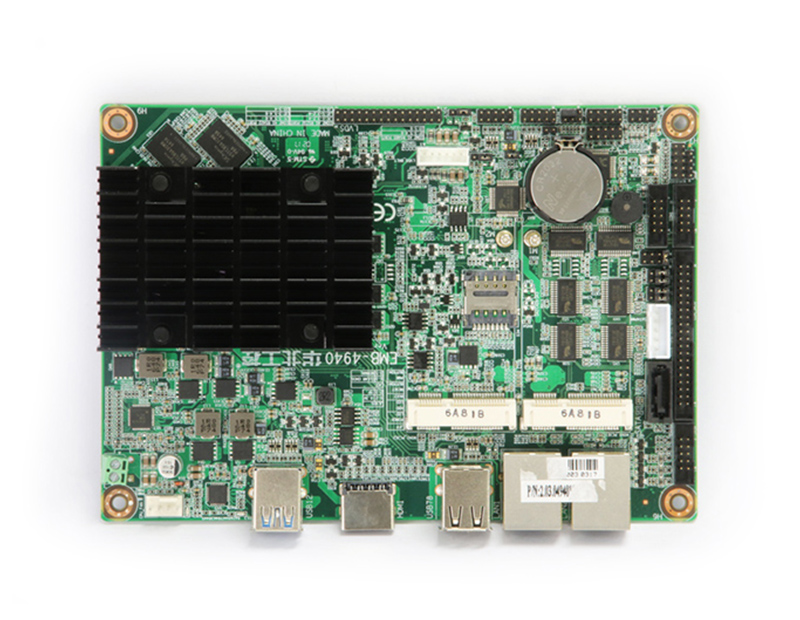

EMB-4940

CPU

Support Intel Atom J1900 CPU

Graphic Control

CPU integration

Memory

1*On Board DDR3L Memory slot,1066/1333/1600MHz,The biggest can support 4GB

Storage

1*SATA,Support SATA 2.0

Display Port

Support 1*VGA,1*HDMI,1*Dual channel 24bit LVDS VGA Support up to 1920*1200 Dual channel 24bit LVDS Support up to 1920*1200 HDMI Support up to 1920*1080

Ethernet

2*LAN Intel I211,10/100/1000Mbps RJ45

USB

1*USB3.0,7*USB2.0

Audio

1*Line-out,1*Mic-in,1*AMP

COM

5*RS-232,1*RS-232/422/485

I/O

2*Mini-PCIe,One of the support 1*Mini-PCIe support MSATA,another 1*Mini-PCIe support WIFI/3G/4G 1*SIM Card slot 1*JFP 1*SYS FAN 8*GPIO can support Input/Output programming

Watchdog

Support

BIOS

AMI UEFI BIOS

System

Windows 7,Windows 10,Linux

Power Supply

DC 12V

Temperature/humidity

Working temperature:0℃～60℃ Storage temperature:-40℃～85℃ 5%～95% Relative humidity,No condensation

Size

165mm x 115mm
