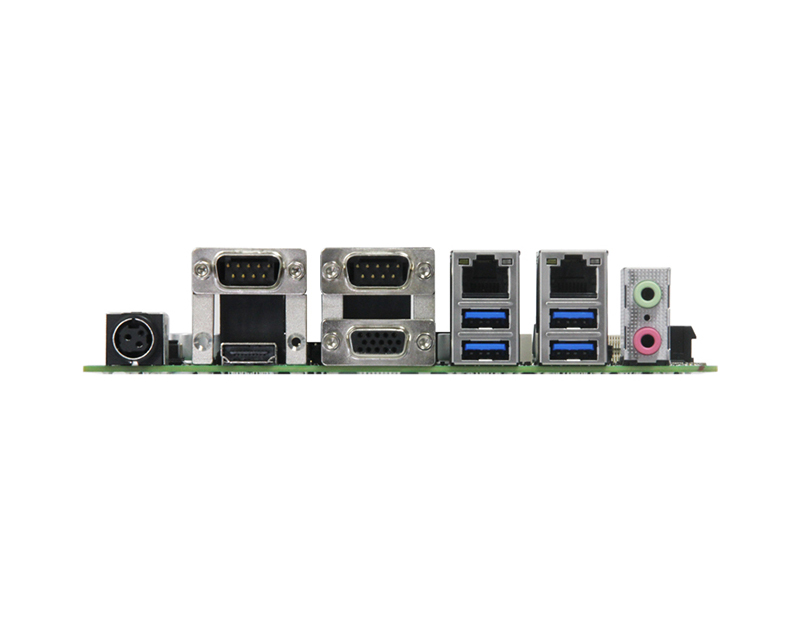

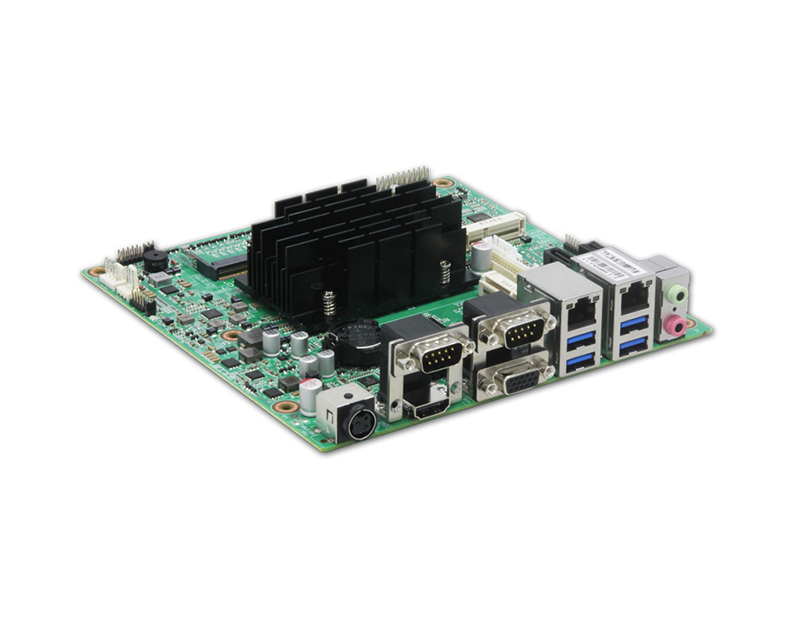

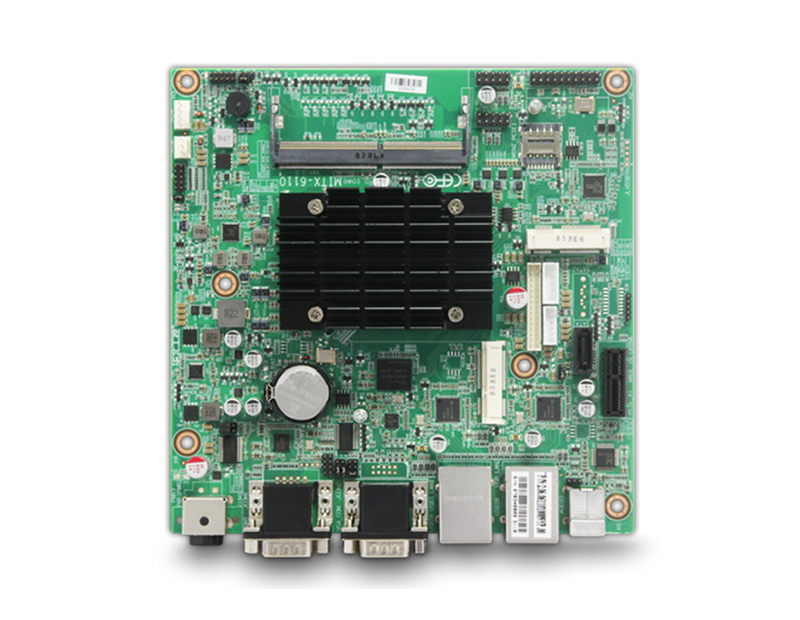

MITX-6110

Support Intel Gemini Lake Pentium/Celeron CPU,2*LAN,4*USB2.0,4*USB3.0,2*COM,Mini-ITX motherboard

◆ Support Intel Gemini Lake Pentium/Celeron CPU

◆ 1*SO-DIMM DDR4 Memory

◆ 1*VGA,1*HDMI,1*LVDS

◆ 2*LAN,4*USB2.0,4*USB3.0,2*COM

◆ 1*PCIe x1,2*Mini-PCIe

Ask Price Comparison
  • Product Specification
  • Download Center
  • Model

    MITX-6110

    CPU

    Support Intel Gemini Lake Pentium/Celeron CPU

    Graphic Control

    CPU integration

    Memory

    1*SO-DIMM Memory slot,Support DDR4-1866/2133/2400MHz,The biggest can support 8GB

    Storage

    1*SATA,Support SATA 3.0

    Display Port

    Support 1*VGA,1*HDMI,1*Dual channel 24bit LVDS VGA Support up to 1920x1200 HDMI Support up to 4096x2160@ 24 Hz Dual channel 24bit LVDSSupport up to 1920x1200

    Ethernet

    2*LAN Intel I211, 10/100/1000Mbps RJ45

    USB

    4*USB2.0,4*USB3.0

    Audio

    1*Headphone,1*Mic-In,1*Line-In

    COM

    1*RS-232, 1*RS-232/485

    I/O

    1*PCIe x1 slot 2*Mini-PCIe,One of the support 4G/SDD module(optional),another support Wifi Support PS/2 Mouse and keyboard Support LPC extension Support 8*GPIO Support 1*CPUFAN(Support speed control),1*SYSFAN

    Watchdog

    Support

    BIOS

    AMI UEFI BIOS

    System

    Windows 10,Linux

    Power Supply

    DC 12V

    Temperature/humidity

    Working temperature:0℃~60℃ Storage temperature:-40℃~85℃ 5%~95% Relative humidity,No condensation

    Size

    170mm x 170mm
