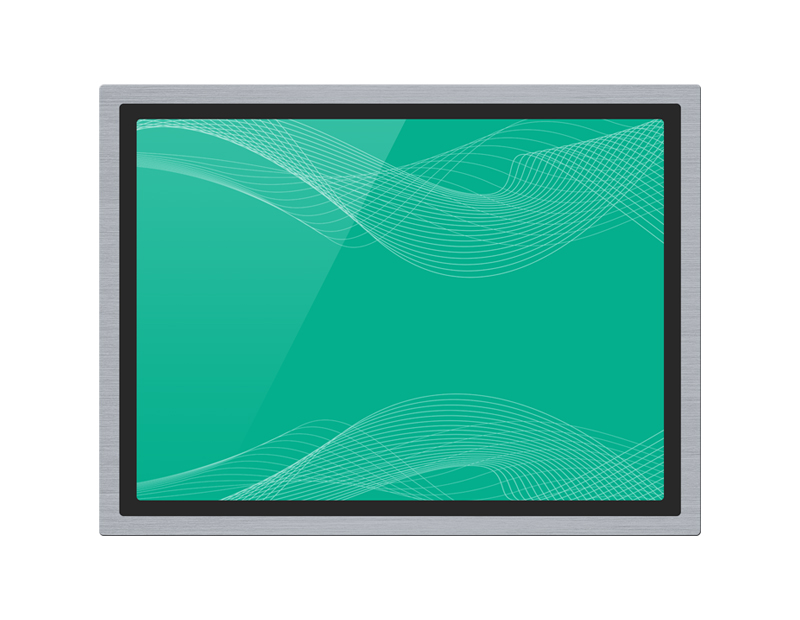

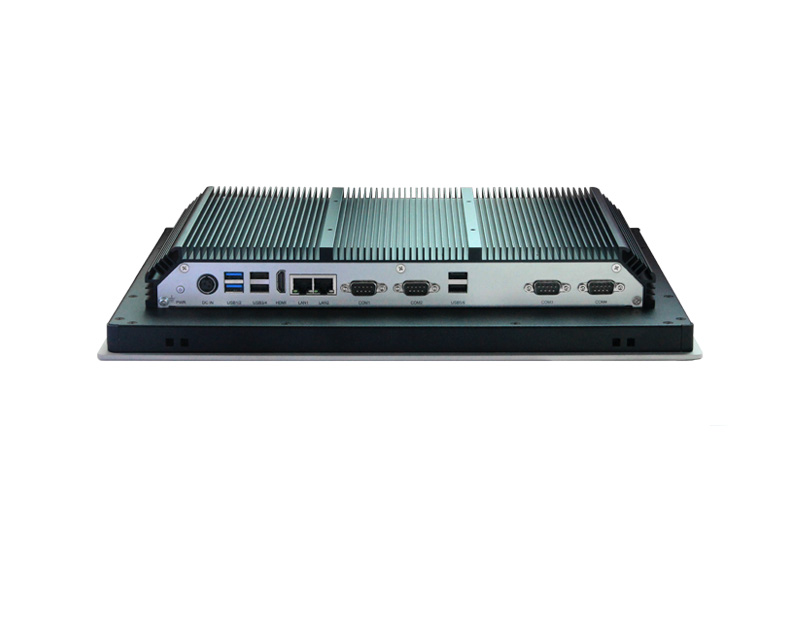

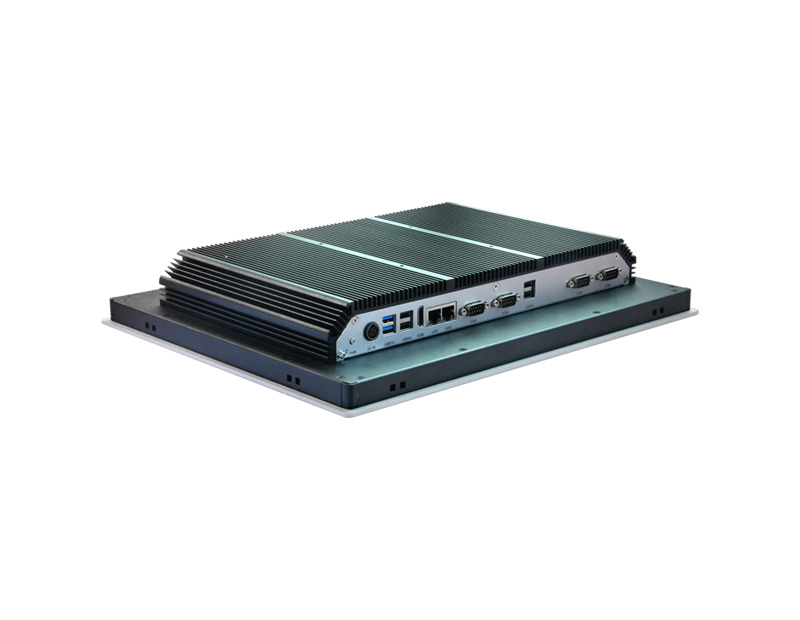

PPC-3315QH

Support 6/7th Intel Core i3/i5/i7 35W CPU,4*LAN,4*USB3.0,2*USB2.0,6*COM,15"

Support 6/7th Intel Core i3/i5/i7 35W CPU

◆ 1*SO-DIMM DDR4-2133/2400

◆ 1*eDP,1*HDMI,1*LVDS

◆ 4*LAN,4*USB3.0,2*USB2.0,6*COM

◆ 2*Mini-PCIe

Ask Price Comparison
  • Product Specification
  • Download Center
  • Model

    PPC-3315H

    CPU

    Support 6/7th Intel Core i3/i5/i7 35W CPU

    Chipset

    Intel H110

    Graphic Control

    up to 1024x768

    Memory

    1*SO-DIMM slot,Support DDR4-2133/2400,The biggest can support 16GB

    Storage

    2*SATA,1*mSATA(Mini-PCIe interface)

    Display Port

    1*HDMI interface

    Ethernet

    4*LAN Intel I211, 10/100/1000Mbps RJ45

    USB

    4*USB3.0,2*USB2.0

    Audio

    Support 1*Mic_in,1*LINE_OUT,1*LINE_IN,1*5W Audio power amplifier interface

    COM

    2*RS232/RS422/RS485, 4*RS232/RS485

    I/O

    Support 2*Mini-PCIe(One of the 1*Mini-PCIe can support 3G/4G/Wifi module(optional),another 1*Mini-PCIe support mSATA) Support 8*GPIO Support 1*4PIN Fan interface Support 1*CONN extension Support PS/2 Mouse and keyboard

    Watchdog

    Support

    BIOS

    AMI UEFI BIOS

    System

    Windows,Linux

    Power Supply

    DC 12V (optional 9~36V)

    Temperature/humidity

    Working temperature : 0℃~60℃ Storage temperature:-40℃~80℃ 5%~95% Relative humidity,No condensation

    Size

    350mm x 274mm x 57mm

    Color

    black

    Mainboard model

    BPC-7975

    Installation

    Panel embedded

    Screen parameters

    Screen Size 15" Aspect Ratio 4:3 Resolution 1024x768 Contrast Ratio 800:1 Brightness 350cd/m2 Maximum Color 16.2M

    Touch screen

    The whole plane Capacitive/resistive
