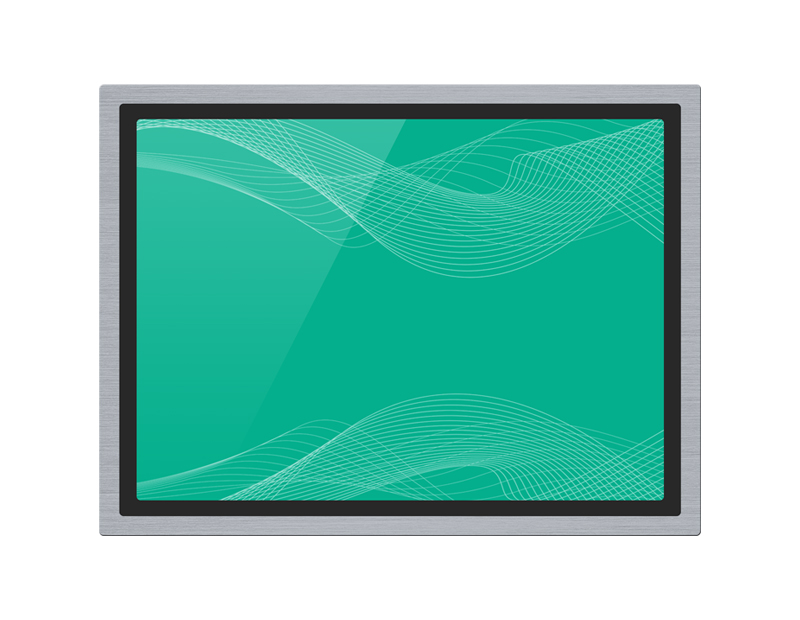

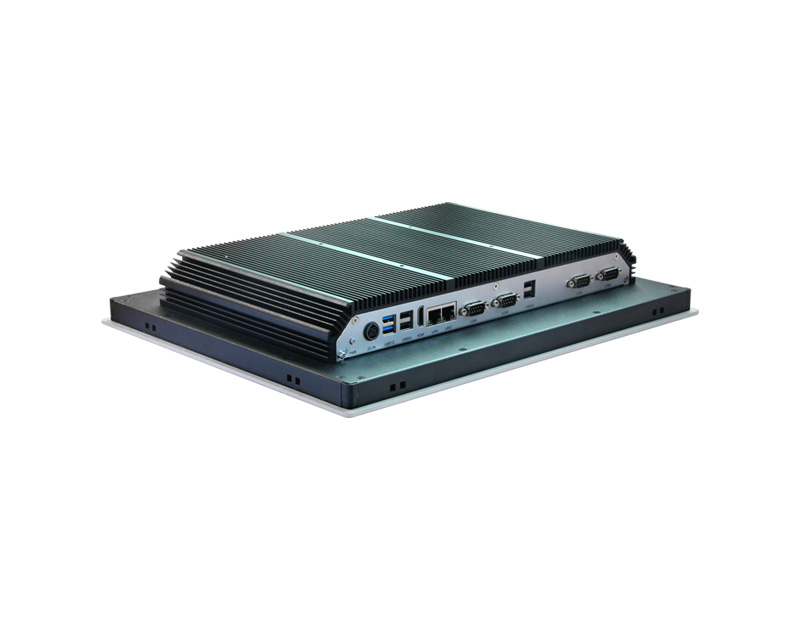

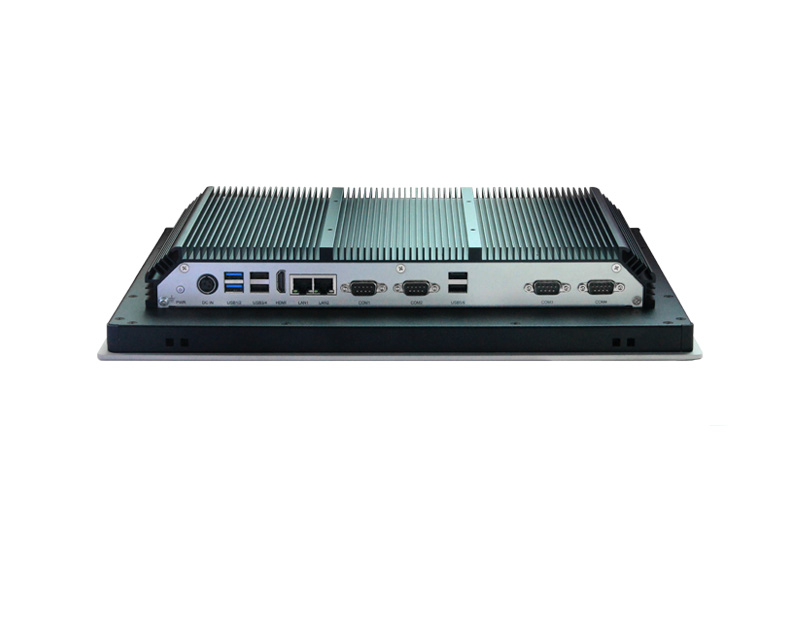

PPC-3156CF

Support Intel Skylake-U Processor 14nm BGA1356 CPU,2*LAN,4*USB3.0,2*COM,15.6"

◆ Support Intel Skylake-U Processor 14nm BGA1356 CPU

◆ 1*SO-DIMM DDR4 memory

◆ 1*VGA,1*HDMI,1*LVDS

◆ 2*LAN,4*USB3.0,2*COM

◆ 2*Mini-PCIe

Ask Price Comparison
  • Product Specification
  • Download Center
  • Model

    PPC-3156F

    CPU

    Intel Skylake-U 14nm BGA1356 CPU

    Chipset

    Intel Skylake-U

    Graphic Control

    up to 1920x1080

    Memory

    1*SO-DIMM slot,Support DDR4-1866/2133MHz, The biggest can support 16GB

    Storage

    1*SATA,1*mSATA(Mini-PCIe interface)

    Display Port

    1*HDMI interface

    Ethernet

    2*LAN Intel I211, 10/100/1000Mbps RJ45

    USB

    4*USB3.0

    Audio

    Support 1*Mic_in,1*LINE_OUT,1*LINE_IN,1*5W Audio power amplifier interface

    COM

    2*RS232/RS422/RS485, 4*RS232/RS485

    I/O

    Support 2*Mini-PCIe(One of the 1*Mini-PCIe can support 3G/4G/Wifi module(optional),another 1*Mini-PCIe support mSATA) Support 8*GPIO Support 1*4PIN Fan interface Support 1*CONN extension Support PS/2 Mouse and keyboard

    Watchdog

    Support

    BIOS

    AMI UEFI BIOS

    System

    Windows,Linux

    Power Supply

    DC 12V (optional 9~36V)

    Temperature/humidity

    Working temperature : 0℃~60℃ Storage temperature:-40℃~80℃ 5%~95% Relative humidity,No condensation

    Size

    390.5mm x 240mm x 57mm

    Color

    black

    Mainboard model

    BPC-7966

    Cooling way

    New fanless wide temperature heat dissipation structure

    Installation

    VESA(with stents 100mmx100mm)

    Screen parameters

    Screen Size 15.6" Aspect Ratio 16:9 Resolution 1920x1080 Contrast Ratio 800:1 Brightness 300~600cd/m2 Maximum Color 16.7M

    Touch screen

    The whole plane Capacitive/resistive
