Model

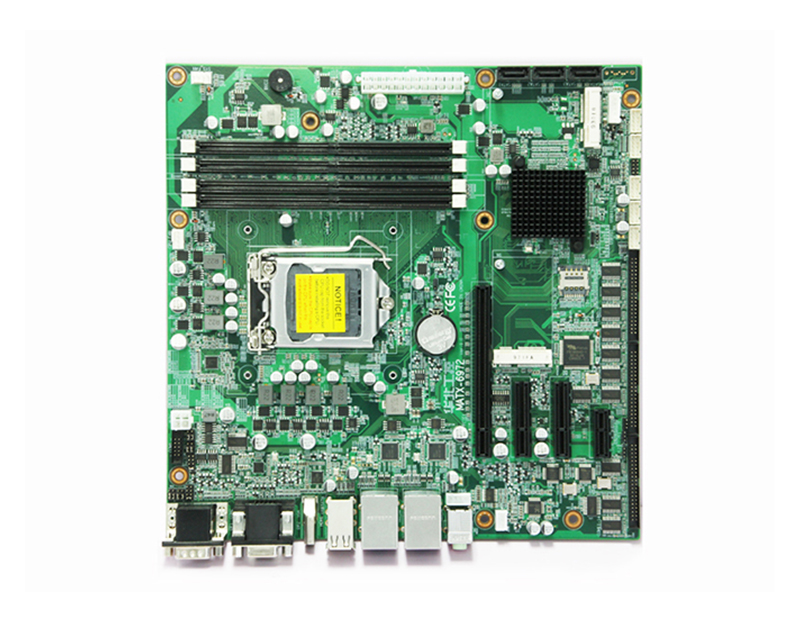

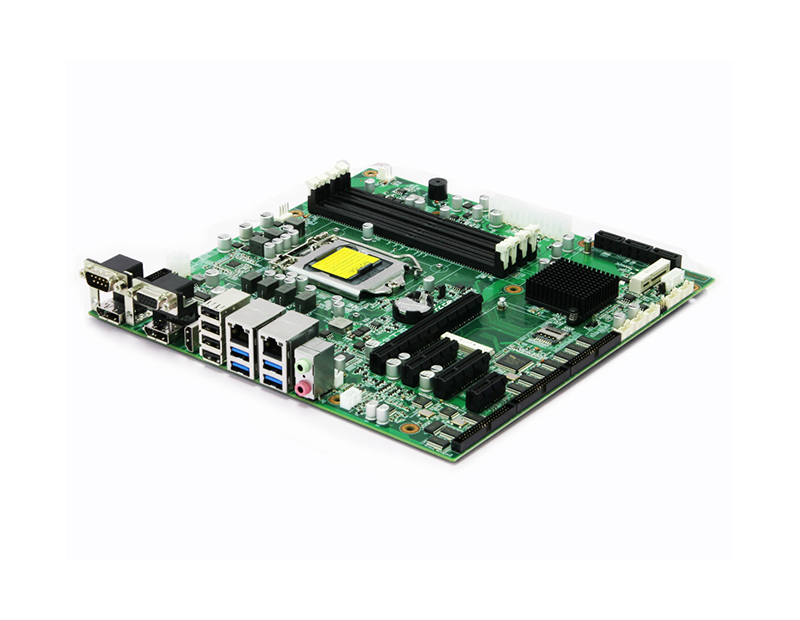

MATX-6972

CPU

Support Intel 6/7th Core i3/i5/i7 LGA1151 CPU

Chipset

Intel Q170/H110

Graphic Control

CPU integration

Memory

4*DIMM Dual channel Memory slot,Support DDR4 1866/2133MHz,board biggest Support 64GB(H110 support 2*DIMM Dual channel Memory slot,Support DDR4 1866/2133MHz,board biggest Support32GB)

Storage

4*SATA,Support SATA3.0

Display Port

2*DP,1*HDMI+1*VGA DP up to 4096X2304 VGA up to 1920x1200 HDMI up to 2560X1600

Ethernet

2*LAN Intel I210, 10/100/1000Mbps RJ45

USB

4*USB3.0、10*USB2.0（H110 only Support 6*USB2.0）

Audio

1*Headphone,1*MIC-IN, 1*Line in,1*5W AMP

COM

12*RS-232, 2*RS-232/422/485

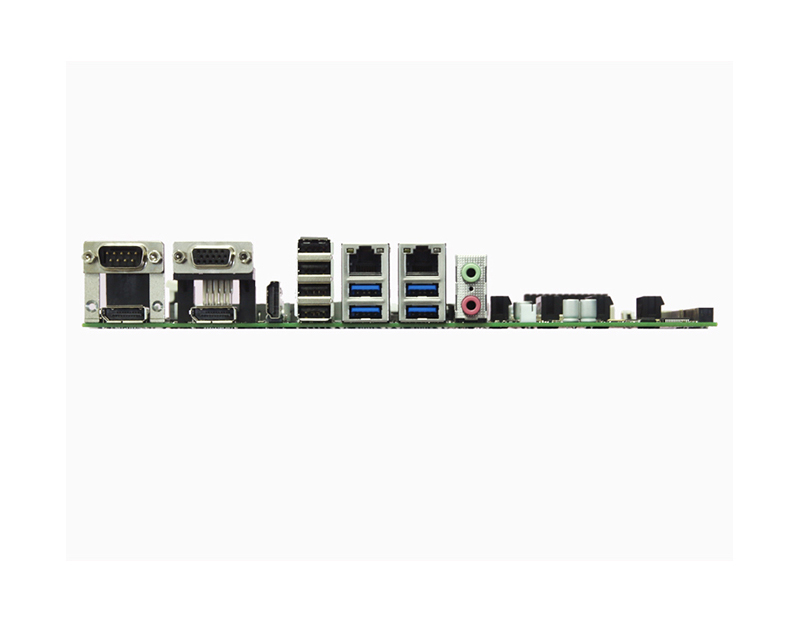

I/O

1*PCIe x16 slot 2*PCIe x4 slot(PCIe x1 signal) 1*PCIe x1 slot 2*Mini PCIe,One of the support 4G/Wifi module,another support SSD Support 1* CPUFAN（Support speed control）,1*SYSFAN Support PS/2 Mouse and keyboard Support 8*GPIO

Watchdog

Support

BIOS

AMI UEFI BIOS

System

Windows 7, Windows 10,Linux

Power Supply

ATX

Temperature/humidity

Working temperature : 0℃～60℃ Storage temperature:-40℃～80℃ 5%～95% Relative humidity,No condensation

Size

244mm x 244mm
