Model

PPC-3319F

CPU

Intel Skylake-U 14nm BGA1356 CPU

Chipset

Intel Skylake-U

Graphic Control

up to 1280x1024

Memory

1*SO-DIMM slot,Support DDR4-1866/2133MHz,The biggest can support 16GB

Storage

1*SATA,1*mSATA（Mini-PCIe interface）

Display Port

1*HDMI interface

Ethernet

4*LAN Intel I211, 10/100/1000Mbps RJ45

USB

1*USB3.0,5*USB2.0

Audio

Support 1*Mic_in,1*LINE_OUT,1*LINE_IN,1*5W Audio power amplifier interface

COM

2*RS232/RS422/RS485, 4*RS232/RS485

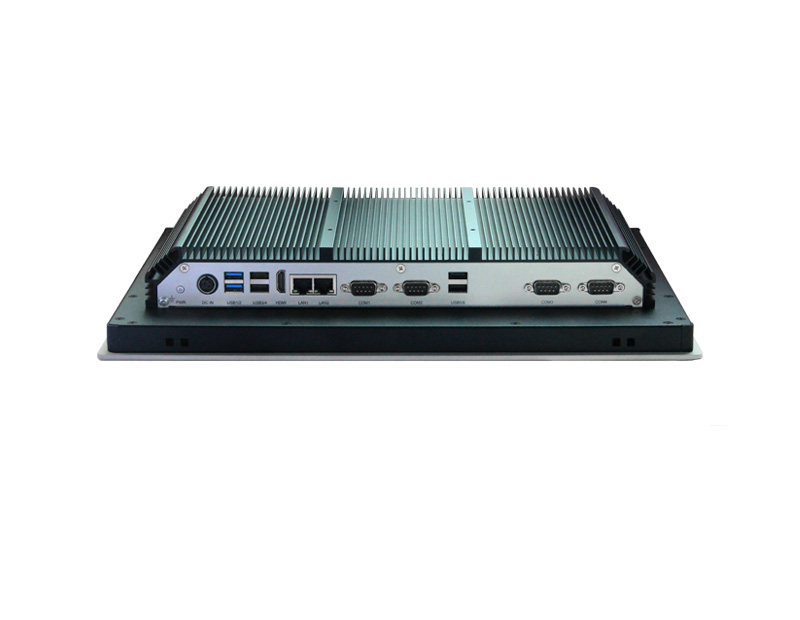

I/O

Support 2*Mini-PCIe（One of the 1*Mini-PCIe can support 3G/4G/Wifi module（optional）,another 1*Mini-PCIe support mSATA) Support 8*GPIO Support 1*4PIN Fan interface Support 1*CONN extension Support PS/2 Mouse and keyboard

Watchdog

Support

BIOS

AMI UEFI BIOS

System

Windows,Linux

Power Supply

DC 12V (optional 9~36V)

Temperature/humidity

Working temperature : 0℃～60℃ Storage temperature:-40℃～80℃ 5%～95% Relative humidity,No condensation

Size

425.5mm x 350.5mm x 60mm

Color

black

Mainboard model

BPC-7966

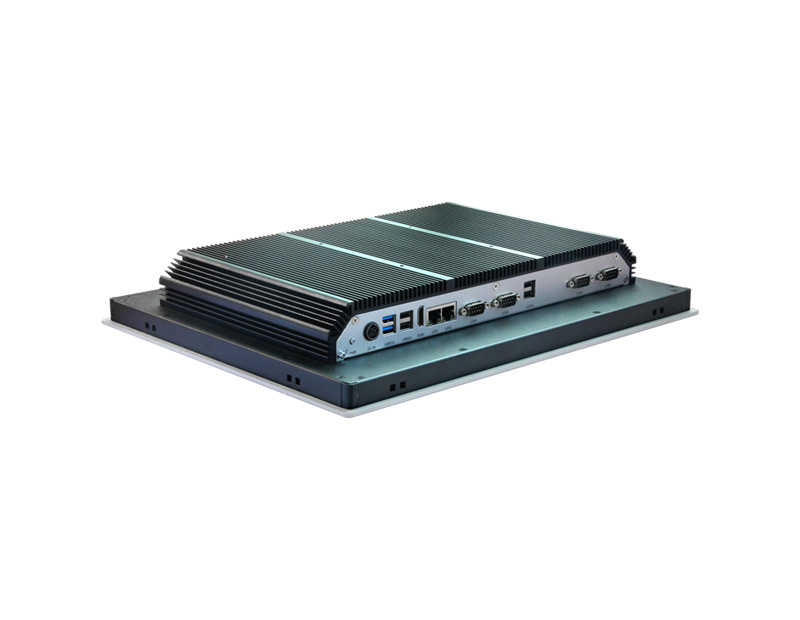

Cooling way

New fanless wide temperature heat dissipation structure

Installation

Panel embedded

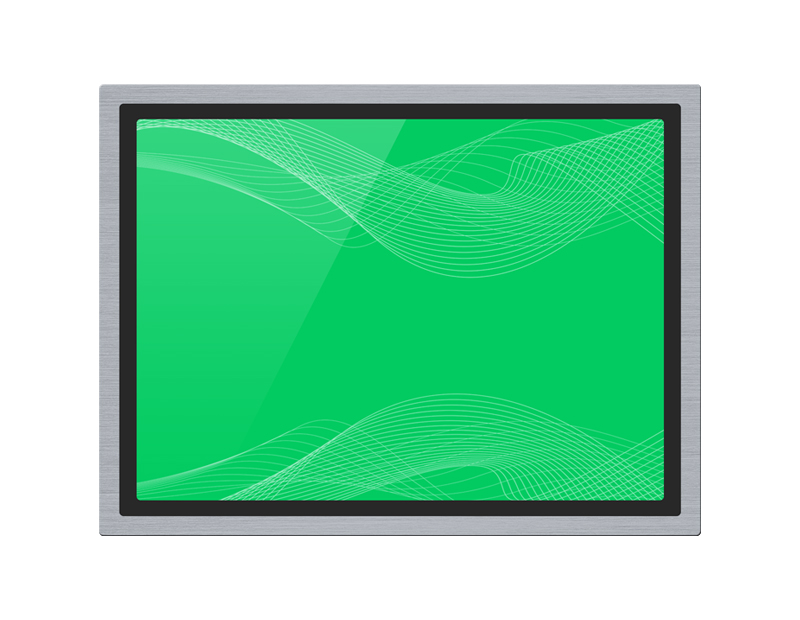

Screen parameters

Screen Size 19" Aspect Ratio 5:4 Resolution 1280x1024 Contrast Ratio 1000:1 Brightness 250cd/m2 Maximum Color 16.7M

Touch screen

The whole plane Capacitive/resistive
