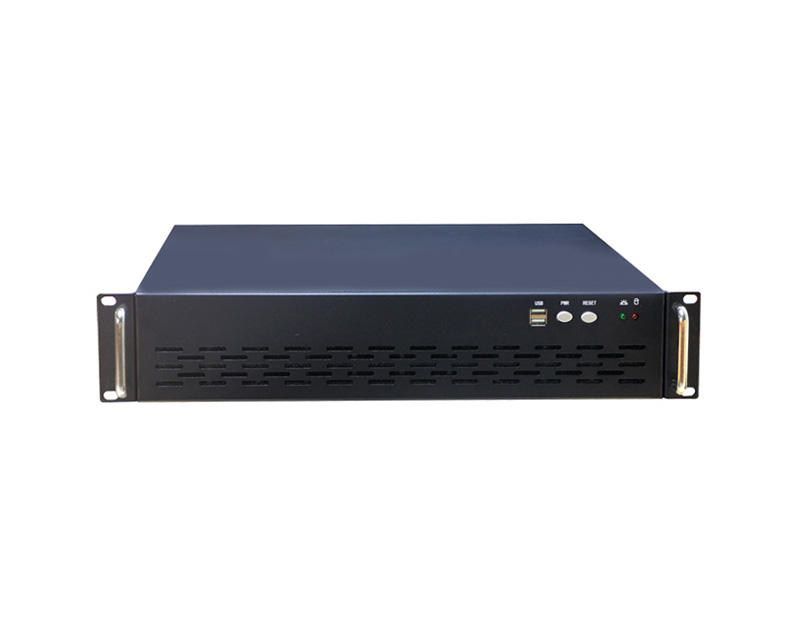

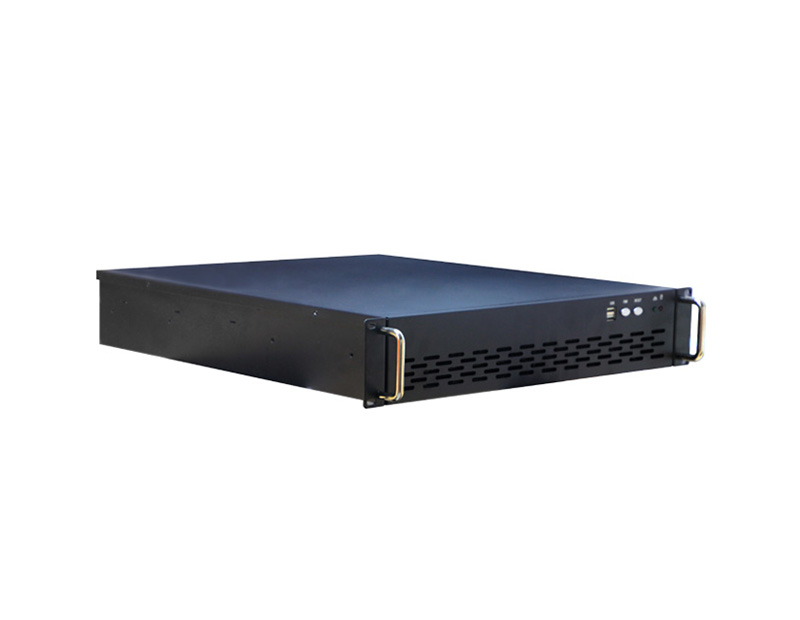

RPC-2500ZX

Based on zhaoxin KaiXian KX-6000 Series,Support KX-U6780,KX-U6780A,KX-U6580,KX-6640A,KX-6640MA CPU,1*VGA,1*HDMI,1*DP,2*LAN,10*USB2.0,7*USB3.0,2*COM,1*LPT,1*PS/2,2U shelf mountable

◆ Support KX-U6780,KX-U6780A,KX-U6580,KX-6640A,KX-6640MA CPU

◆ 4* Dual channel UDIMM memory slot,DDRIV 2666MHz,The biggest can support 64GB

◆ 1*VGA,1*HDMI,1*DP

◆ 2*LAN,10*USB2.0,7*USB3.0

◆ 2*COM(can use AFC-385C extension 8*COM)

◆ 1*PCIe x16 Slots(PCIE x8 signal),5*PCIe x4(PCIE X1 signal)

Ask Price Comparison
  • Product Specification
  • Download Center
  • Model

    RPC-2500ZX

    CPU

    Support KX-U6780,KX-U6780A,KX-U6580,KX-6640A,KX-6640MA CPU

    Chipset

    ZX-200

    Graphic Control

    CPU integration

    Memory

    4*Dual channel UDIMM memory slot,DDRIV 2666MHz,The biggest can support 64GB

    Storage

    4*SATA 3.0

    Display Port

    1*VGA,up to 1920x 1200 1*HDMI,up to 3840x 2160 1*DP,up to 4096x 2304

    Ethernet

    2*LAN RJ45,Intel I211+RTL8211F

    USB

    10*USB2.0,7*USB3.0

    Audio

    FP_AUDIO1:1*2X5Pin 2.5mm pin,Line out,Mic in,Line in AUDIO1:Standard double audio;Line out;Mic in 1*AMP;

    COM

    2*COM(can using AFC-385C Extend out 8*COM)

    I/O

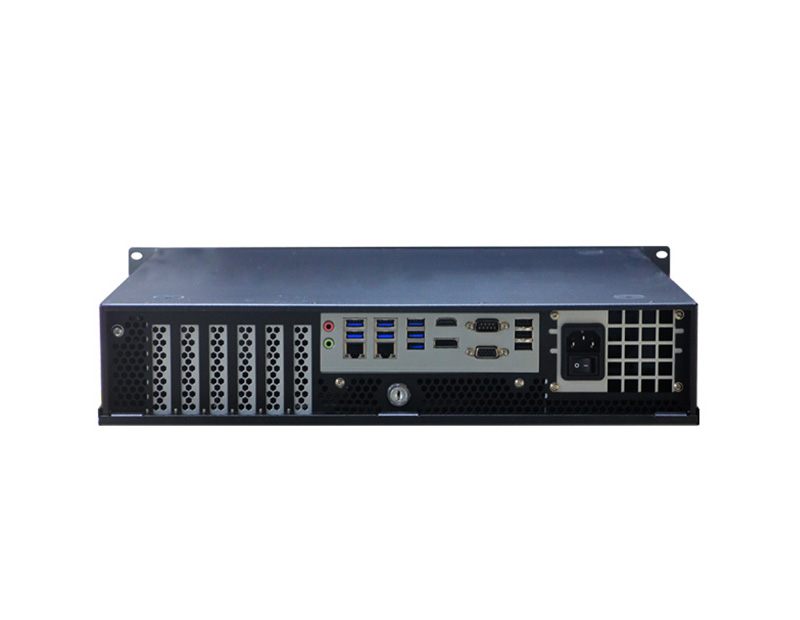

    1*VGA,1*HDMI,1*DP 2*LAN 10*USB2.0,7*USB3.0 2*COM(can using AFC-385C Extend out 8*COM) 1*PCIe x16 Slots(PCIEx8 signal),5*PCIe x4(PCIEx1 signal) 4*SATA 3.0 1*LPT 1*PS/2 8*GPIO

    Watchdog

    Support

    BIOS

    AMI UEFI BIOS

    System

    Windows/Linux

    Power Supply

    ATX

    Temperature/humidity

    Working temperature : 0℃~60℃ Storage temperature:-40℃~80℃ 5%~95% Relative humidity,No condensation

    Size

    501.7mm x 428.4mm x 88.2mm(W x D x H)

    Color

    black

    Material

    Cooling way

    initiative

    Installation

    2U shelf mountable
