Model

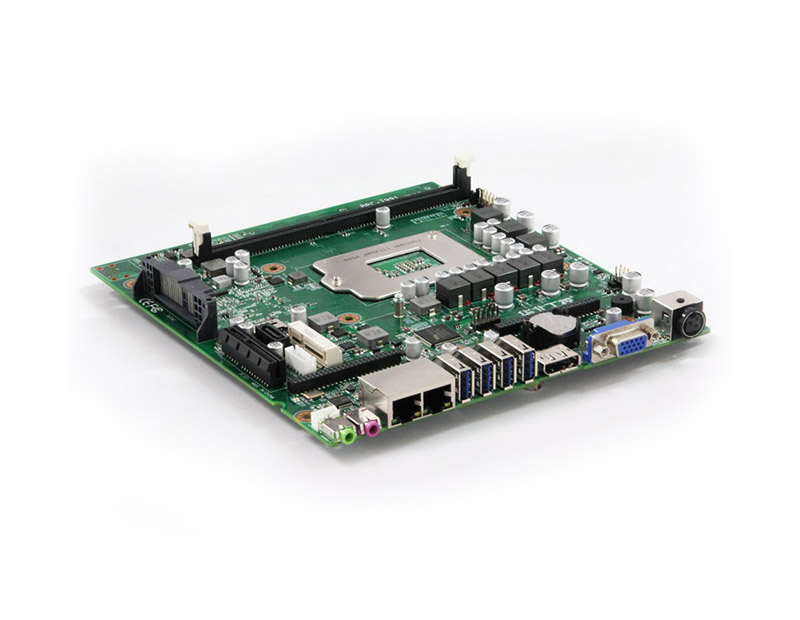

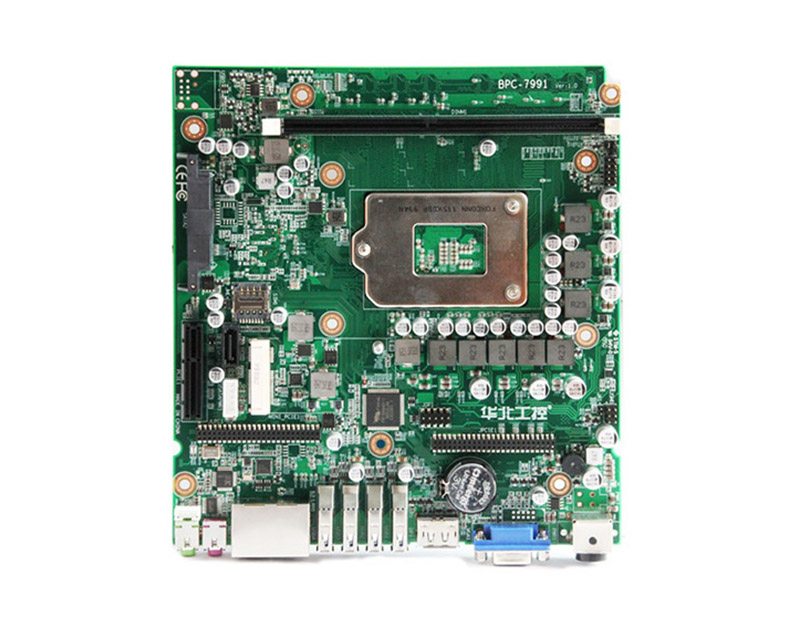

BPC-7991

CPU

Support Intel 8/9th Core i3/i5/i7 LGA1151 CPU

Chipset

Intel H310/Q370

Graphic Control

CPU integration

Memory

Onboard4GB/8GB/16GBDDR4 Memory particles+1*DDR4UDIMM slot, UDIMM Memory slot biggest Support 32GB,board biggest Support 48GB

Storage

2*SATA3.0

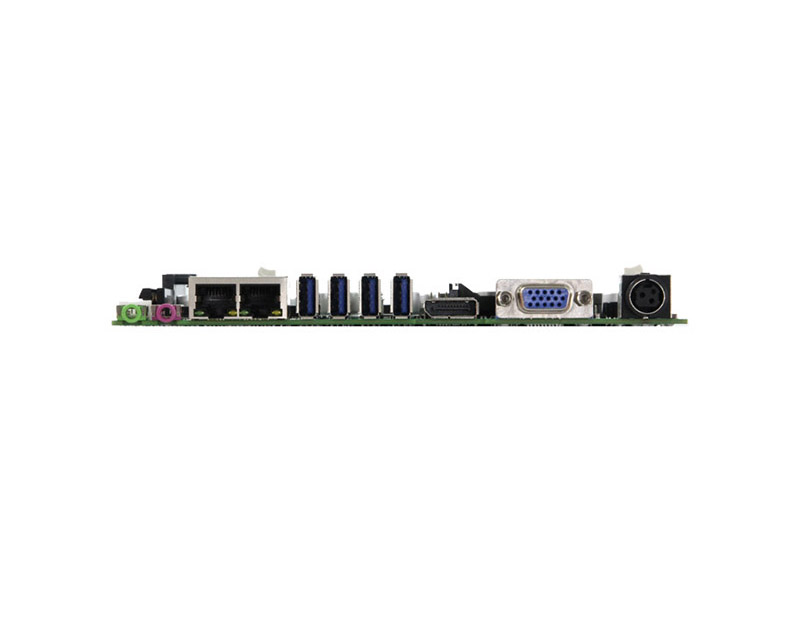

Display Port

1*VGA,1*DP VGA up to 1920x1080 DP up to 4096x2304

Ethernet

2*LAN Intel I211,I219,10/100/1000MMbps RJ45

USB

4*USB3.0,1*USB2.0

Audio

1*Mic_in,1*LINE_OUT,1*power amplifier

I/O

2*SATA3.0,4*USB3.0,1*USB2.0,8*GPIO 1*Mini-PCIe slot,Support MSATA/WIFI/3G/4G 1*SIM Card slot 1*PCIe*4（non-standard） 1*2.54mm2*5PINJFP 1*2x25PIN2.0mmJLPC 1*2x25PIN2.0mmJCOMUSBDDI 1*2x25PIN2.0mmJPCIe1 8*GPIO

Watchdog

Support

BIOS

AMI UEFI BIOS

System

Windows10,Linux

Power Supply

DC 12V

Temperature/humidity

Working temperature:0℃～60℃ Storage temperature:-40℃～85℃ 5%～95% Relative humidity,No condensation

Size

183mm x 198mm
