Model

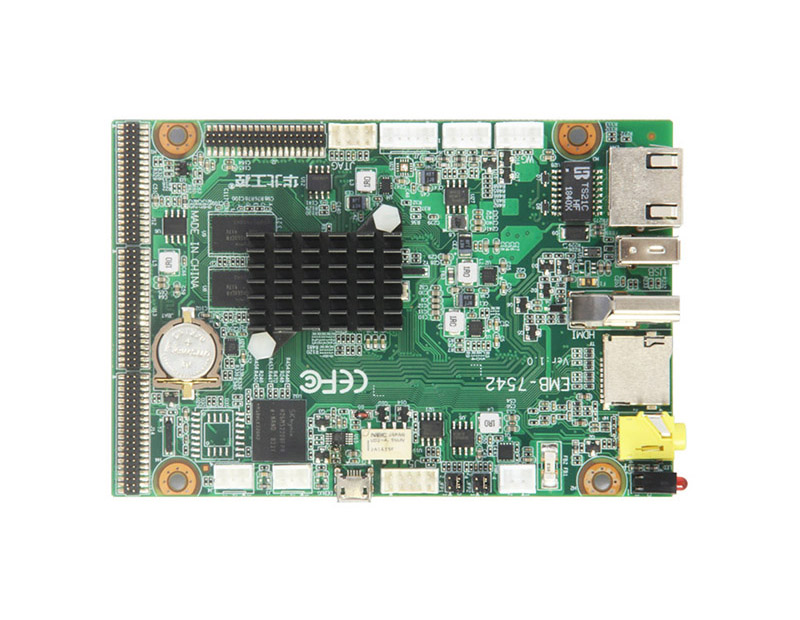

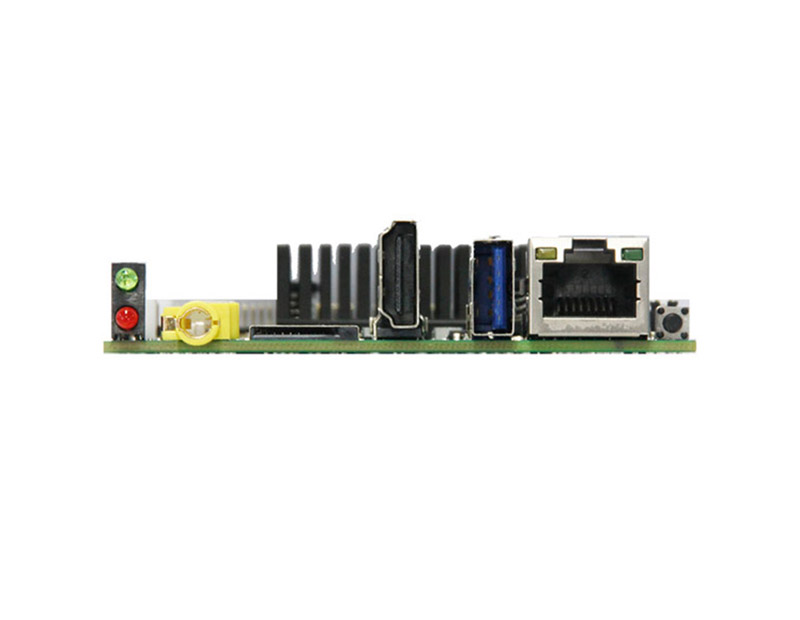

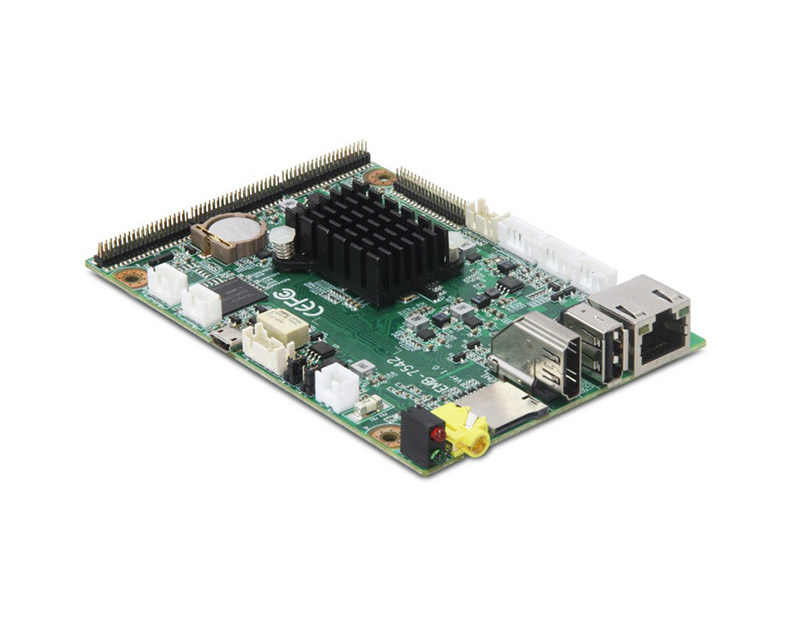

EMB-7542

CPU

Hi3516DV300 Dual Core CPU

Graphic Control

H.264/H.265 Streaming real-time coding (decoding)

NPU

Support Neural network speed ，Calculate the force could reach 1T

Memory

Onboard1GB DDR3

Storage

Onboard16GB eMMC, 1*TF

Display Port

1*HDMI,up to 1080@60Hz

Ethernet

1*LAN，10/100Mbps;

USB

1*USB2.0

Audio

1*Line out, 1*Mic

COM

2*R-S232, 1*RS-485

I/O

2*DI, 1*DO, 1*P-IRIS, 1*DC-IRIS, 1*4Lane Mipi_RX, 2*SPI, 1*4Lane Mipi_DSI, 5*I2C, 1*Wiegand, 1*Reset switch,

Watchdog

Support

System

Linux

Power Supply

Single power supply+12V DC

Temperature/humidity

Working temperature:0℃～70℃ Storage temperature:-40℃～85℃ 5%～95% Relative humidity,No condensation

Size

PCB Size 80mm*120mm
