Model

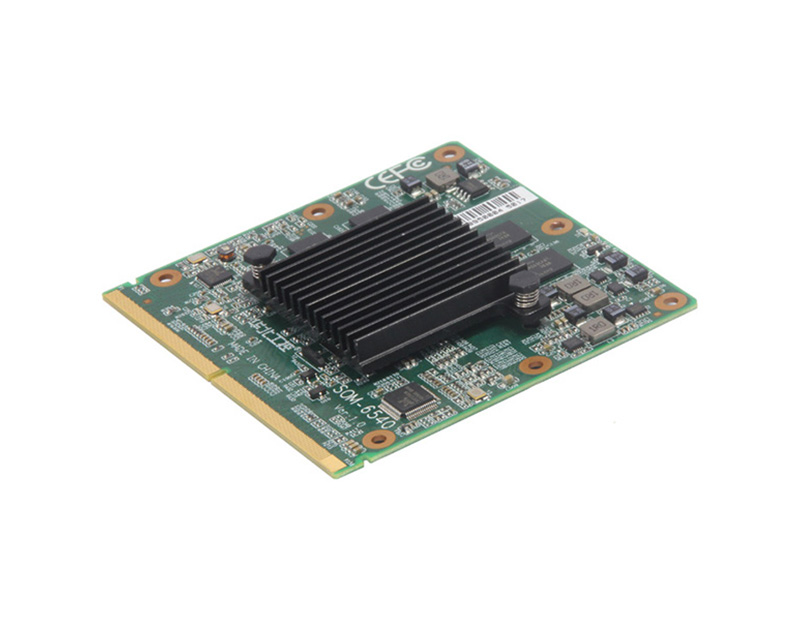

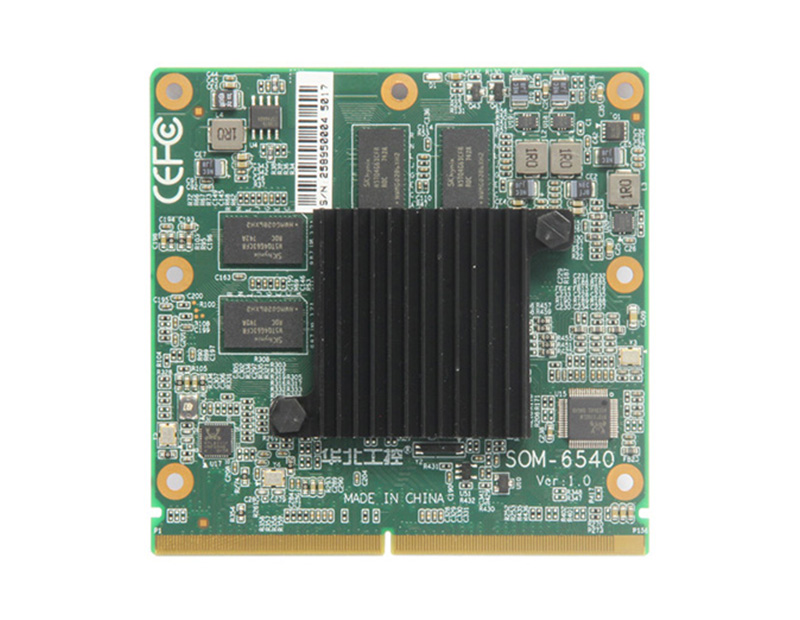

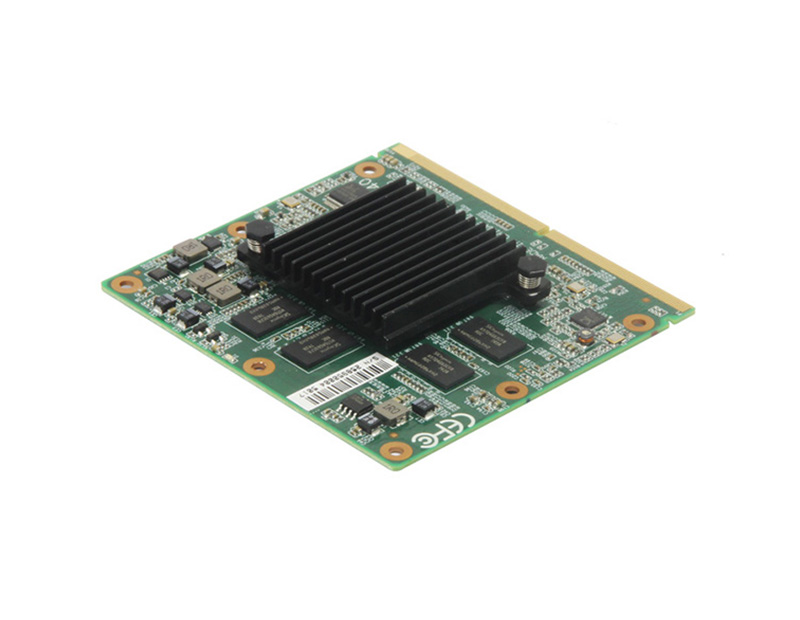

SOM-6540

CPU

Hisilicon Hi3536芯片，采用 Four Core Cortex-A17+ Single core Cortex-A7 CPU

Graphic Control

integrationMali-T720 GPU，With high performance H.265/H.264 Video encoding/decoding engine

Memory

Onboard2GB DDR3

Storage

Onboard8/16/32GB eMMC

Display Port

Through the base plate can be extended support VGA/LVDS,HDMI,CVBS,Support independent double display

Ethernet

Through the base plate can be extended support WIFI,LAN,SIM card,Support 4G ethernet Realtek 1000M PHY RTL8211F

USB

Through the base plate can be extended support multichannel USB2.0,multichannel USB 3.0

Audio

Through the base plate can be extended support Line-in,Line-out,Mic,Can take power amplifier

COM

Through the base plate can be extended support multichannel RS-232 COM

I/O

Through the base plate can be extended support multichannel GPIO,SPI,I2C,SATA

Watchdog

Support

System

Linux

Power Supply

power supply+5V DC

Temperature/humidity

Working temperature:0℃～70℃ Storage temperature:-40℃～85℃ 5%～95% Relative humidity,No condensation

Size

PCB Size 82mm*80mm
