Model

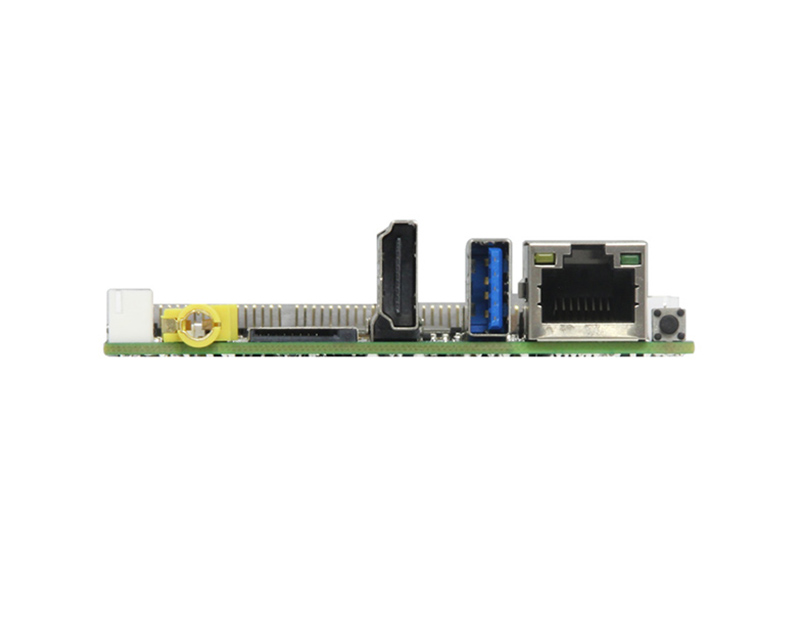

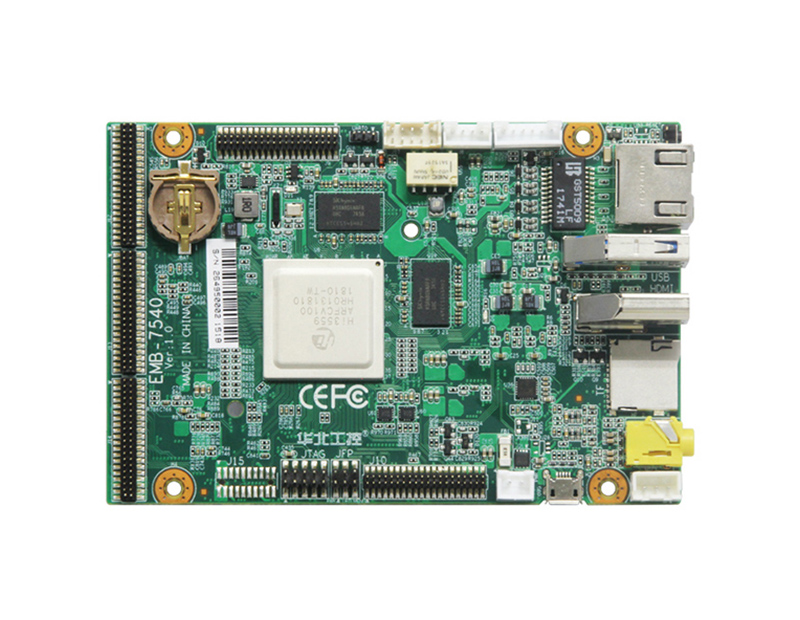

EMB-7540

CPU

Hi3559A 2*A73+3*A53+1*M7+2*G71+4*DSP+2*NNIE Multi-core heterogeneous CPU

Graphic Control

Independent DSP and GPU，Support 8K@30fps+1080P@30fps or 4KP120+1080P30，H.265 coding

NPU

Support Neural network speed ，Calculate the force could reach 4T

Memory

Onboard4GB DDR4;

Storage

Onboard16GB eMMC, 1*TF

Display Port

1*HDMI,up to 4K

Ethernet

1*LAN,10/100/1000Mbps, Realtek 1000M PHY RTL8211F

USB

1*USB3.0 1*USB2.0_OTG

Audio

1*Line out, 2*Mic

COM

2*RS-232, 1*RS-485

I/O

2*DI, 1*DO, 1*DC-IRIS, 4*4Lane Mipi-RX, 7*SPI, 1*PCIe-X1, 1*SDIO, 1*4Lane Mipi-DSI, 12*I2C, 3*UART, 1*CAN, 1*Reset switch

Watchdog

Support

System

Linux

Power Supply

Single power supply+12V DC

Temperature/humidity

Working temperature:0℃～70℃ Storage temperature:-40℃～85℃ 5%～95% Relative humidity,No condensation

Size

PCB Size 80mm x 120mm
