Model

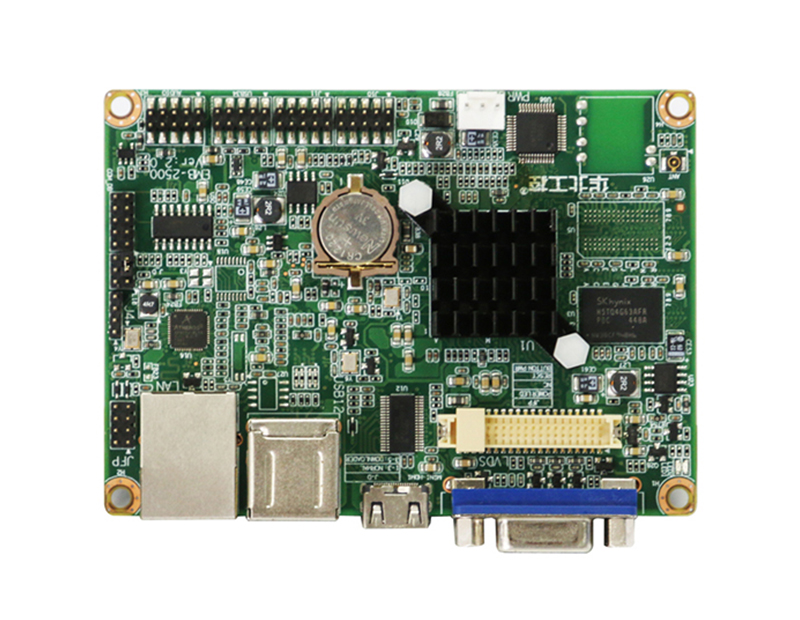

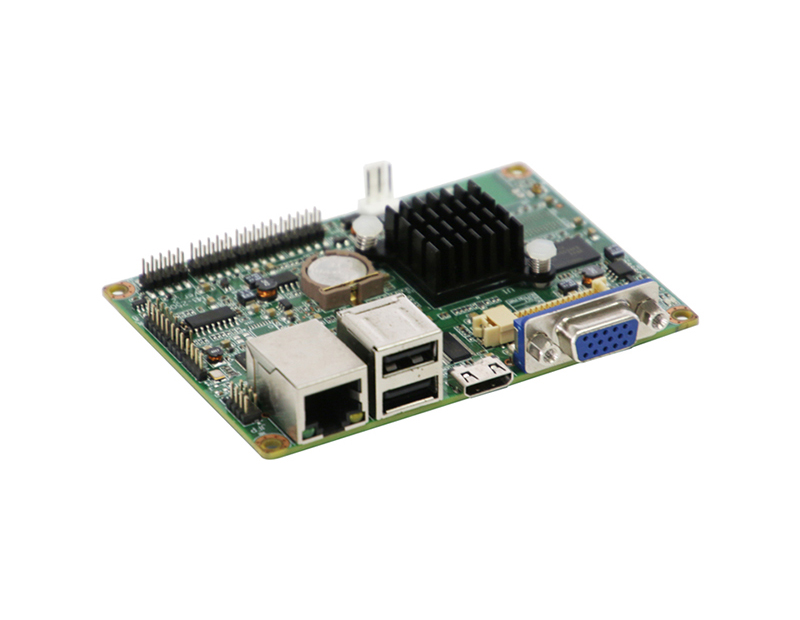

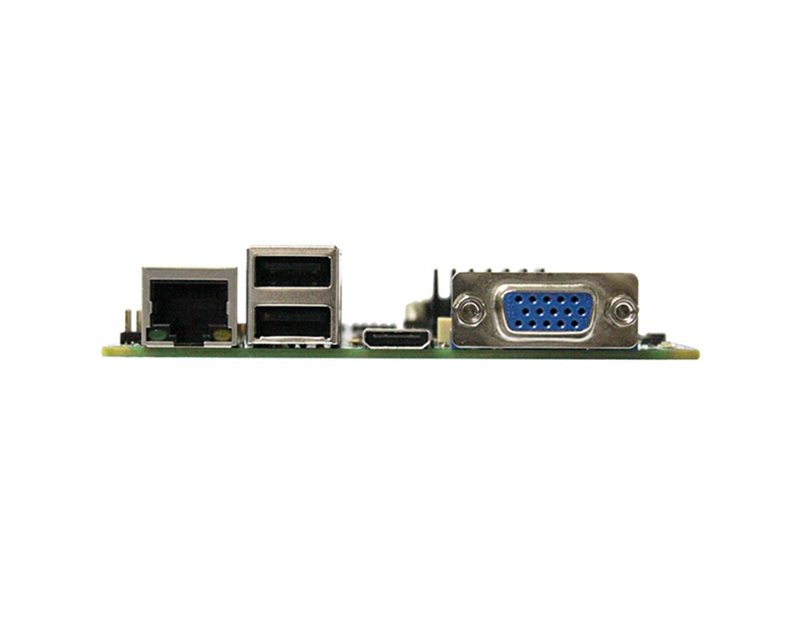

EMB-2500

CPU

NXP i.MX6 S/DL/Q CPU

Graphic Control

CPU integration

Memory

Onboard1GB DDR3 Memory，The biggest can support 2GB

Storage

1*eMMC,最大Support 128GB 1*TF

Display Port

1*HDMI,1*VGA HDMI up to 1920x1080@60Hz VGA up to 1920x1080@60Hz

Ethernet

1*LAN Qualcomm AR8033,10/100/1000Mbps RJ45 Onboard Wifi Onboard bluetooth

USB

2*USB2.0

Audio

1*Line-out,1*Headphone,1*Mic-in

COM

2*RS-232

I/O

2*CAN 8*GPIO 1*SPI

Watchdog

Support

System

Android,Linux

Power Supply

DC 5V

Temperature/humidity

Working temperature：0℃～60℃ Storage temperature：-40℃～80℃ 5%～95% Relative humidity,No condensation

Size

100mm x 72mm

Installation
