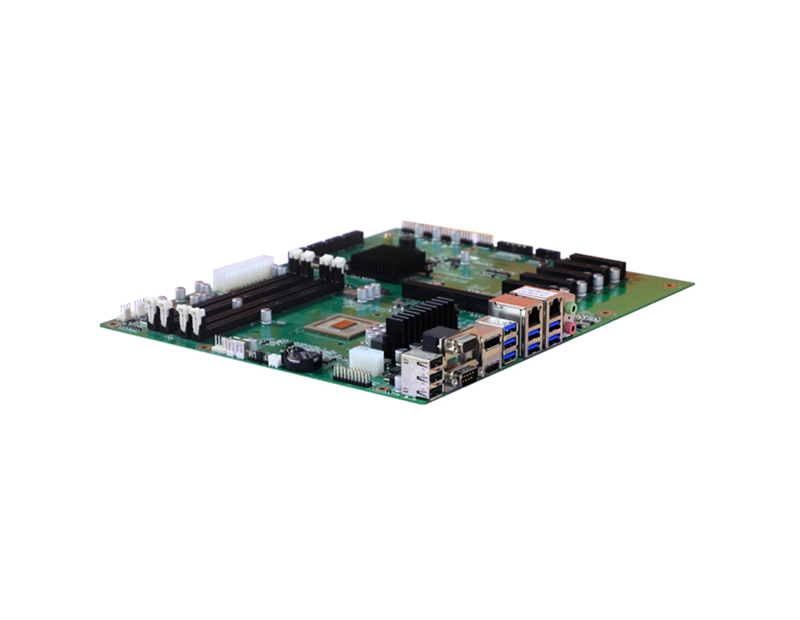

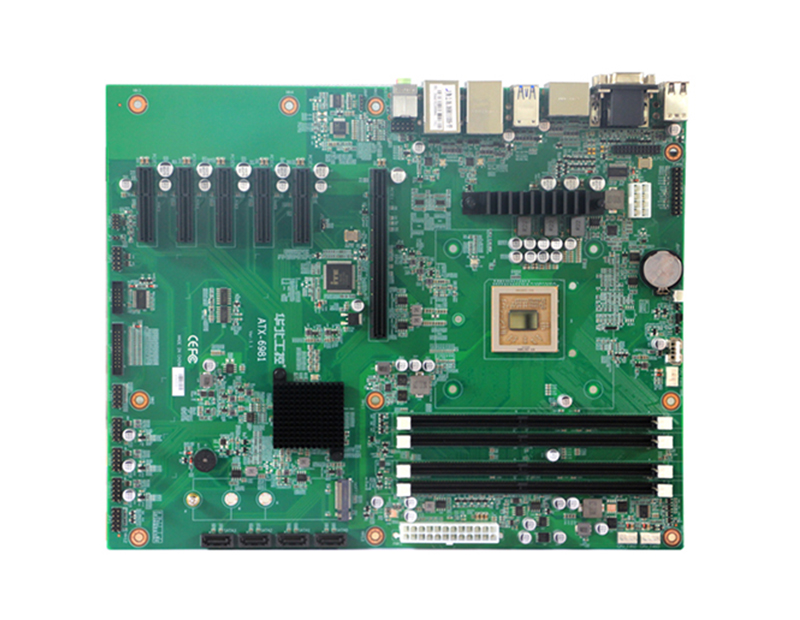

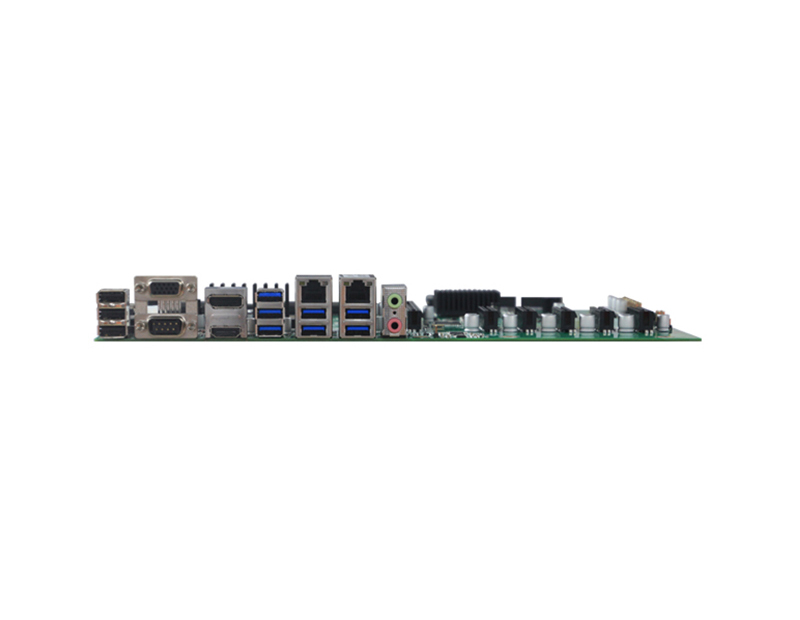

ATX-6981

Support zhaoxin KX-U6780/U6780A/U6580/6640A/6640MA CPU,2*LAN,10*USB2.0,7*USB3.0,2*COM,ATX motherboard

◆ Support zhaoxin KX-U6780/U6780A/U6580/6640A/6640MA CPU

◆ 4*UDIMM DDR4 Memory

◆ 1*VGA,1*HDMI,1*DP

◆ 2*LAN,10*USB2.0,7*USB3.0,2*COM

◆ 1*PCIe x1,2*Mini-PCIe

Ask Price Comparison
  • Product Specification
  • Download Center
  • Model

    ATX-6981

    CPU

    Support zhaoxin KX-U6780/U6780A/U6580/6640A/6640MA CPU

    Chipset

    zhaoxin ZX-200

    Graphic Control

    CPU integration

    Memory

    4*DIMM Memory slot,Support DDR4-2666MHz,The biggest can support 64GB

    Storage

    4*SATA,Support SATA 3.0

    Display Port

    Support 1*VGA,1*HDMI,1*DP VGA up to 1920x1200 HDMI up to 3840X2160 DP up to 4096X2304

    Ethernet

    2*LAN 1*Intel I210,1*RTL8211F,10/100/1000Mbps RJ45

    USB

    10*USB2.0,7*USB3.0

    Audio

    1*Mic-In,1*Line-Out,1*Line-In,1*Line-Out,1*Mic-In

    COM

    2*RS-232

    I/O

    5*PCIe 4x(PCIEx1 signal),1*PCIe 16x(PCIEx8 signal) 1*M.2 Support LPC extension Support PS/2 Mouse and keyboard 1*LPT Support 8*GPIO Support 1* CPUFAN(Support speed control),2*SYSFAN

    Watchdog

    Support

    BIOS

    AMI UEFI BIOS

    System

    Windows 7/10,Linux

    Power Supply

    ATX

    Temperature/humidity

    Working temperature:0℃~60℃ Storage temperature:-40℃~85℃ 5%~95% Relative humidity,No condensation

    Size

    305mm x 244mm
