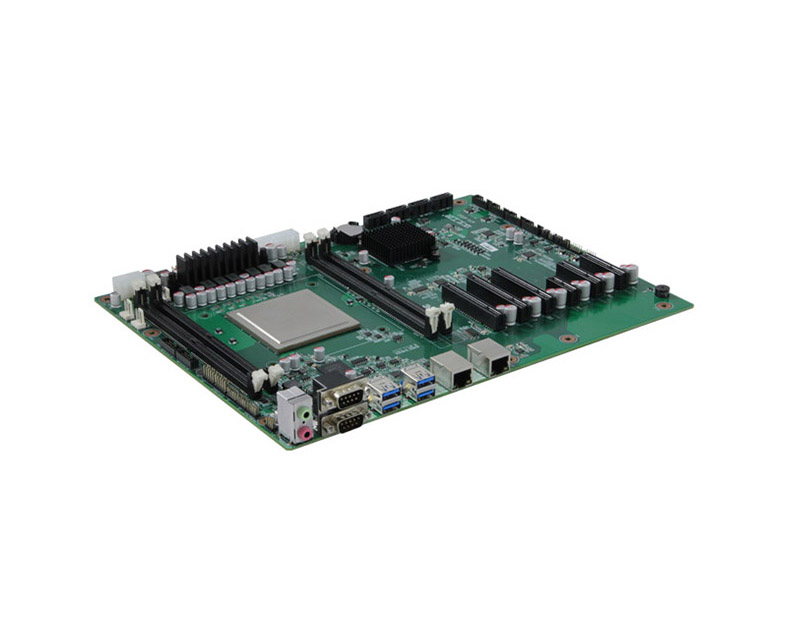

ATX-6991

◆ Based on ARM V8 architecture domestic Phytium FT2000+ processor；

◆ Support 4x DDR4 UDIMM memory slot，DDR4 maximum frequency support: 3200MHz，whole board up to 512GB；

◆ Support 2x LAN，and 10/100/1000M LAN；

◆ Support 4x standard 7Pin SATA；

◆ Support Line out + MIC in；

◆ Size：228.6 x 304.8mm；

Ask Price Comparison

Model	ATX-6552
CPU	Phytium FT2000+
Memory	4x dual channel UDIMM memory slot，support DDR4 maximum frequency: 3200MHz，whole board up to 512GB
Ethernet	2x 10/100/1000M network adapter
USB	8x USB（4xUSB3.0、4xUSB2.0 pin expansion）；
Audio	Support Line out + MIC in
COM	8x COM（in which 2x support RS232/RS485，8x all support RS232，COM1 default Debug）；
Expansion Interface	3x PCIe 8X Slots，2x PCIe 4X Slots，1x PCIe 1X Slots；
Watchdog	Support hardware reset
BIOS	Support Kunlun UEFI
system	Windows 10,Linux
Power Supply	Standard 24Pin +8Pin ATX power supply，support hardware and software switch for system auto boot upon power on；
Temperature	Operating Temperature ：0℃～60℃； Storage Temperature：-40℃～85℃ 5%～95% RH, non-condensing
Size	228.6 x 304.8mm
